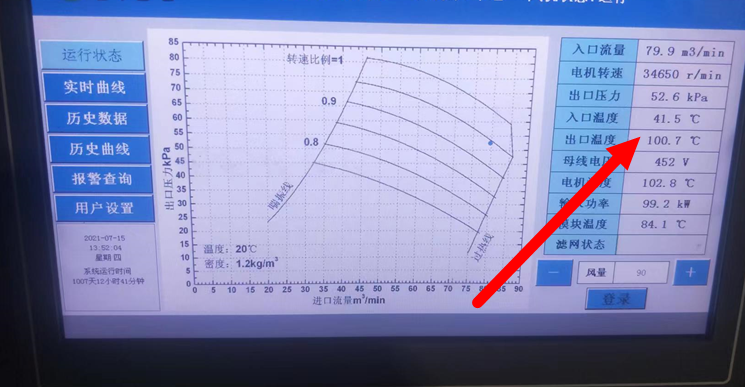

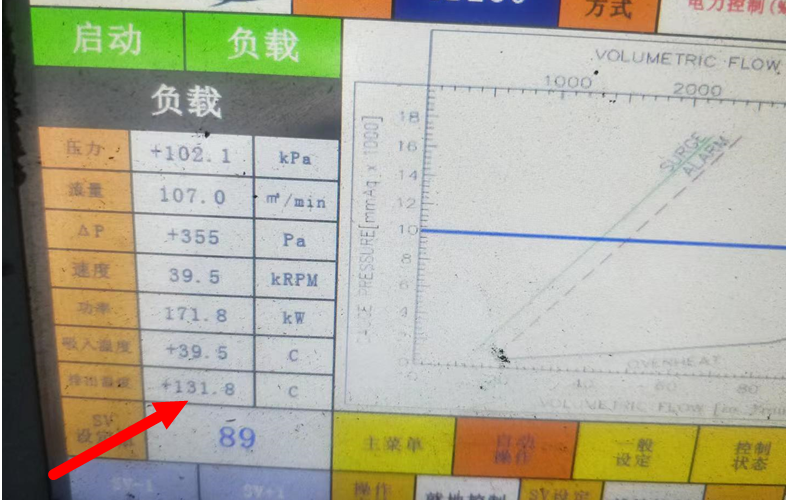

In view of the situation that energy-saving maglev fans are widely used in the sewage treatment process of pulp and paper, pharmaceutical, chemical, printing and dyeing, food and other industries, a large amount of heat generated by maglev fans cannot be cooled and dissipated due to the compression of air molecules and pipeline friction, and the generated fresh air with pressure is discharged into the biochemical tank. Especially in the high temperature season from August to September in summer, the temperature of fresh air rises sharply, and the maximum temperature of the maglev fan can reach about 120℃-140. The temperature of the water in the biochemical pond at the back end of the phase heating results in the high temperature of the water in the biochemical pond, which causes the large number of bacteria cultured in the pond to die, affecting the entire production process of sewage, and thus bringing huge economic losses to the customers.

In view of this situation, our company introduced foreign advanced technology, combined with working conditions, developped a high efficiency and energy saving cooling equipment, the use of our company's patented type of main cooling device (patent No. ZL 201920688013.0), at the same time equipped with the necessary water circulation system, Reduce the temperature cooling of 120℃-140℃ high temperature air outlet to 40℃-45℃ (lower in other seasons), the main cooling equipment has no dead Angle overall cooling, high efficiency, small volume, low cost, small pressure loss (not more than 600Pa), can be horizontal or vertical design, can also be equipped with automatic intelligent constant temperature air outlet, the highest cost performance, At present, our company has been widely used in pharmaceutical, chemical, papermaking, food, printing and dyeing industries, the effect is very well.

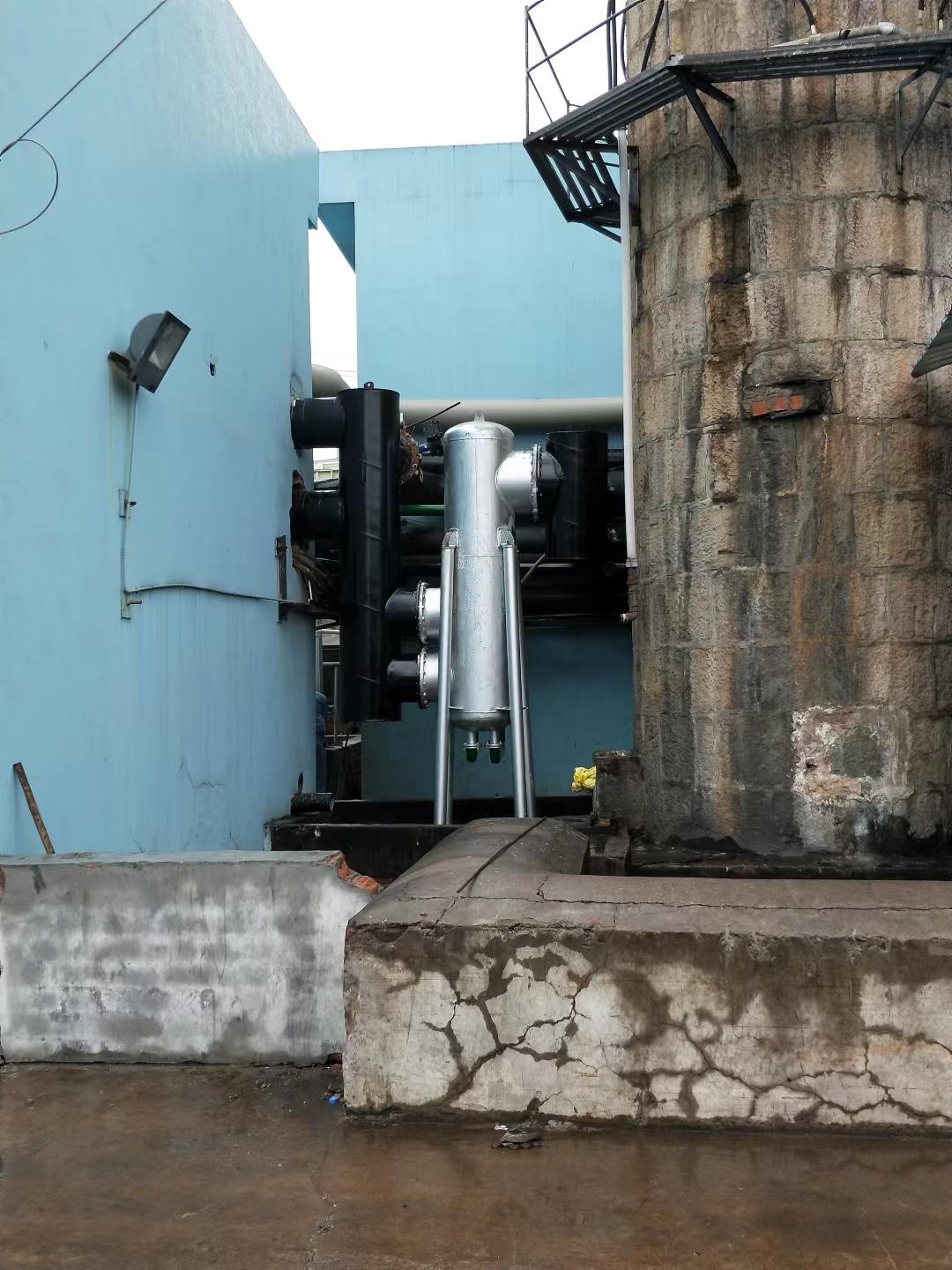

NUE provide magnetic levitation fan efficient cooling system for a paper mill

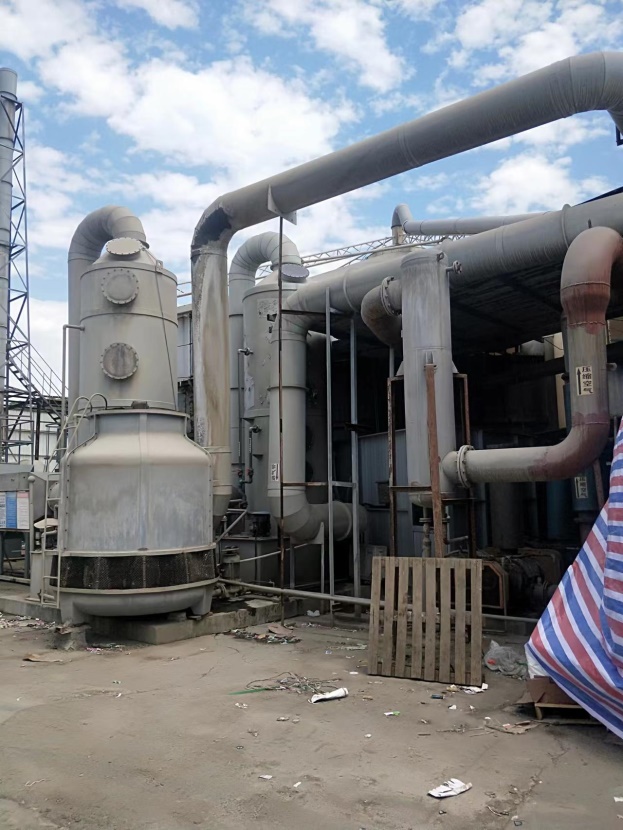

NUE provide magnetic levitation fan efficient cooling equipment for a pharmaceutical company

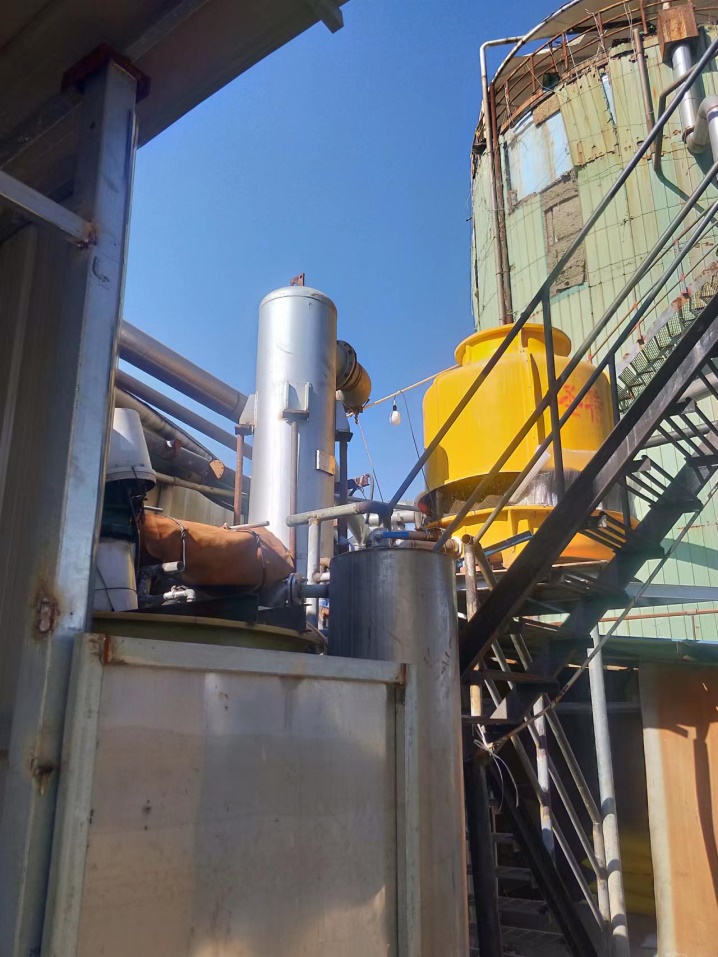

NUE provide magnetic levitation fan all stainless steel cooling equipment for a chemical enterprise
